Setting up a New Space.
From the Quadpro Home Screen, select the Space option located on the left-hand menu.

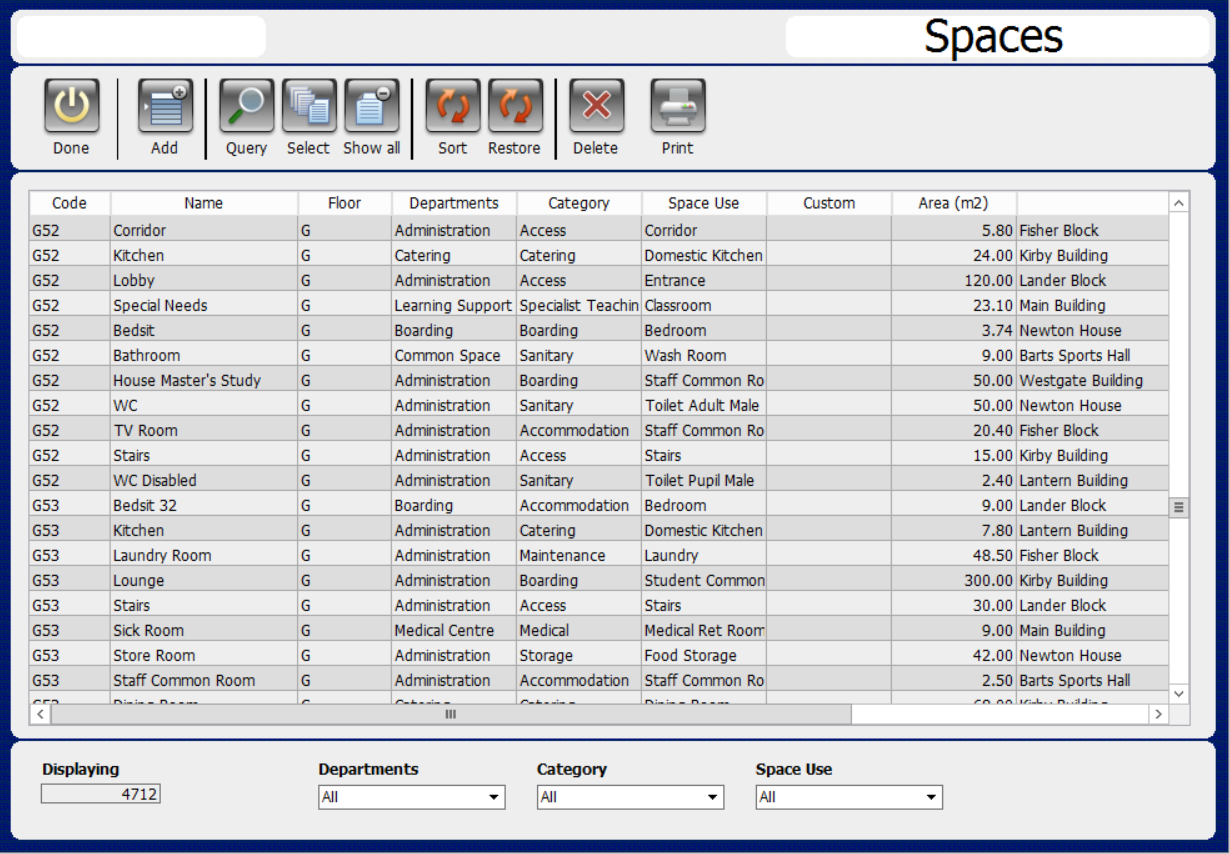

You will be displayed with a list of all Spaces under your organization. These are not categorized by their site.
To filter for a specific building or space, you can use the query option.
Once inside a specific Space’s menu, you will arrive at the home screen here all contact information is displayed.
Space Screen Tabs

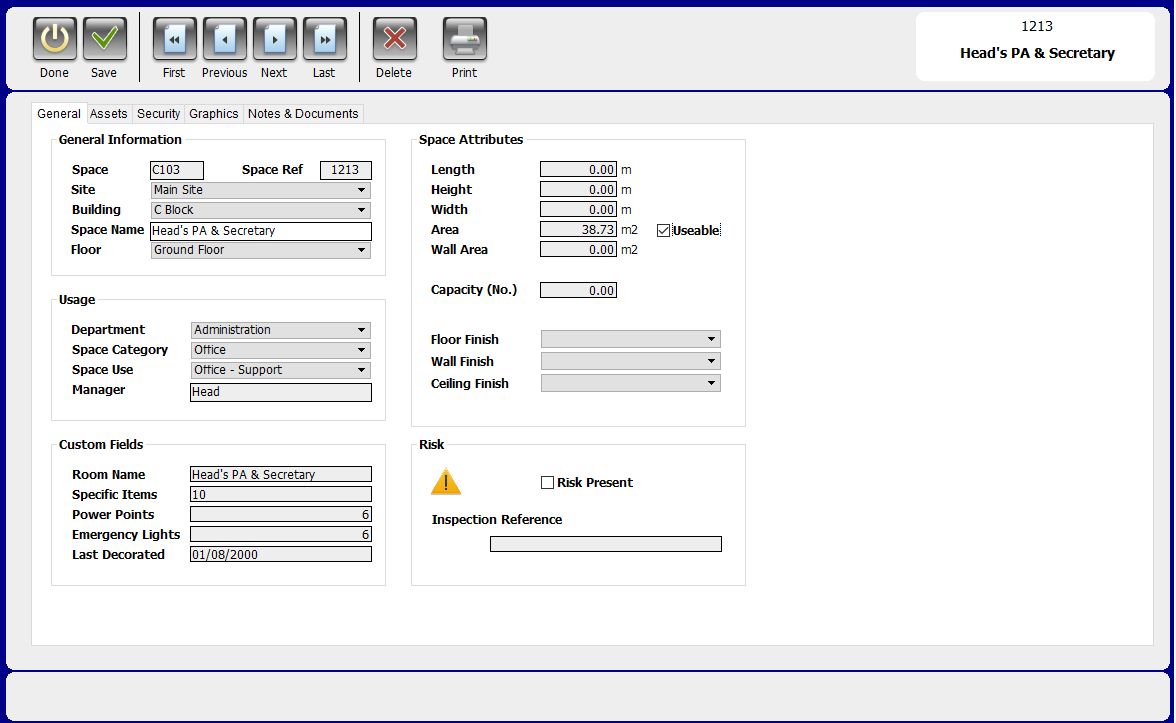

General:
This tab displays all information about the related space – such as location, dimensions, uses, contact, and material information.
You can also mark the space as 'useable' via the check box to incorporate this into your figures.
Assets:
The assets tab displays all assets that are located within that space. To access an asset, simply double click on it. To add a new asset to this space, press Add to go to the asset creation screen. The naming convention for each graphic is as follows space ref number – 2 – 1 or 4789-2-1.
Any additional graphics will be saved in ascending order such as 4789-2-2
Security:
The security tab contains all key, door and sensor information related to the space record.
Graphics:
The Graphics tab is where any visual documents about the space is found and stored. To store any space graphics, go to the Quadpro Folders and add any images into the Space Graphics folder.
Documents:
Any documents or notes for this space are located in this tab. To open the folder, double click on the URL.
