Quadpro Server


  • Windows Server 2012 R2 or later

  • 8GB or greater RAM

  • 2Ghz or faster CPU with at least 2 cores

  • 5GB disk space for database and program files

  • Ports 19812, 19813 and 19814 open for client-server communication

  • Port 80 open for HTTP communication (another port can be configured if necessary)

  • Port 443 open for HTTPS communication (another port can be configured if necessary)

  • Database file .4DD hosted on the server

  • 4D license files (server/client) hosted on the server



Job Request Portal


  • Job request portal registered to an external domain

  • SSL certificate registered against the external domain

  • Port 443 accessible externally

  • Structure files stored on the Quadpro server

  • Building_Plans folder stored on the Quadpro server in the HTML folder



School Server


  • Disk space for storing external documents, with the ability to grow. It is set up as a network drive.


  • Asset files, Assets Photos, Building Photos, Building Plans, CAD Files, Contact Photos, Documents, Documents Library, Health and Safety Files, Site Photos, Site Plans, Space Graphics



Client


  • The client is stored on the individual PC and launched using the desktop shortcut. The client folder is stored in location C:\Users\[username]\client.


  • The Quadpro.4DLINK file contains the IP address of the Quadpro server




Dashboards


  • Dashboards hosted on the school server and accessible using the network drive.

  • 32-bit version of Microsoft Excel.

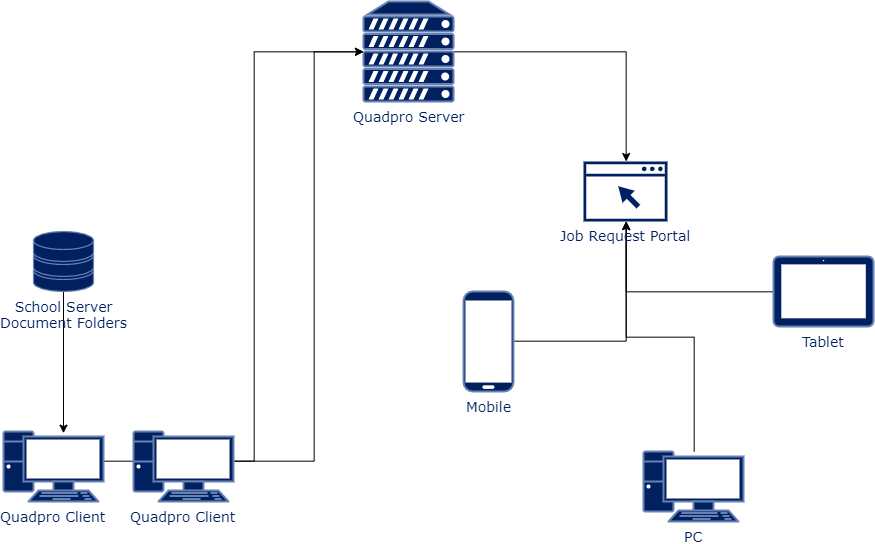

Network Diagram
